智能伺服電流控扭彎角扳手X2
伺服電機、自由編程、LED提示燈、錯誤提示、鎖附參數、簡易安裝
立即咨詢
技術參數
| 型號 | 扭力范圍 | 空載轉速 | 輸入電壓 | 重量 | 標準批頭 | |
| 彎角扳手 | Kgf.cm | N.m | ||||

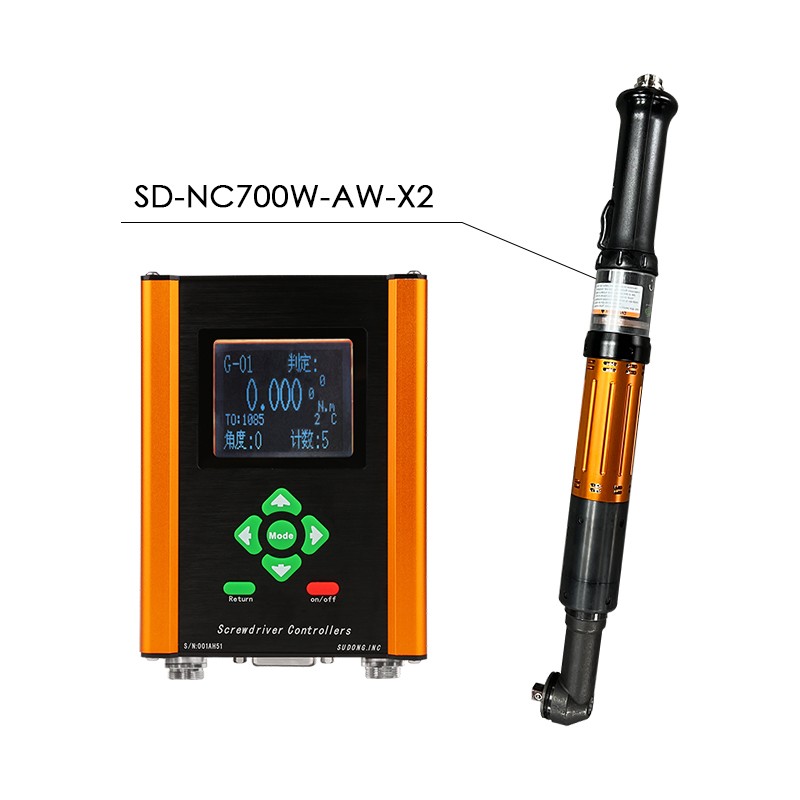

| SD-NC700W-AW-X2 | 10-70 | 1-7 | 50-1400r.p.m | 48V | 2000g | 3/8-Hex |

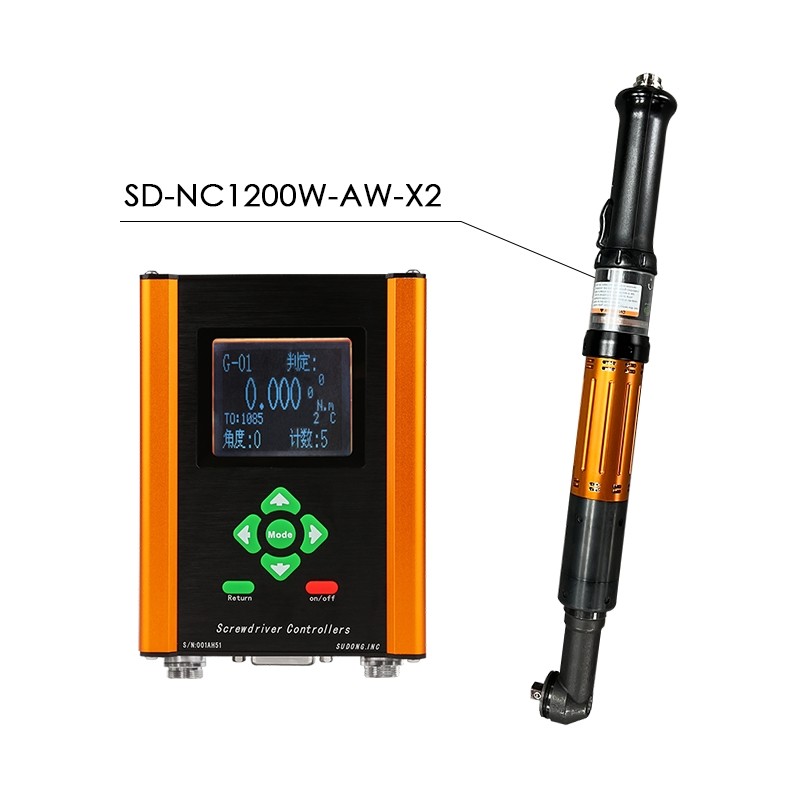

| SD-NC1200W-AW-X2 | 20-120 | 2-12 | 50-1000r.p.m | 3/8-Hex | ||
| SD-NC1800W-AW-X2 | 30-180 | 3-18 | 50-800r.p.m | 3/8-Hex | ||
| SD-NC3000W-AW-X2 | 50-300 | 5-30 | 50-500r.p.m | 3/8-Hex | ||

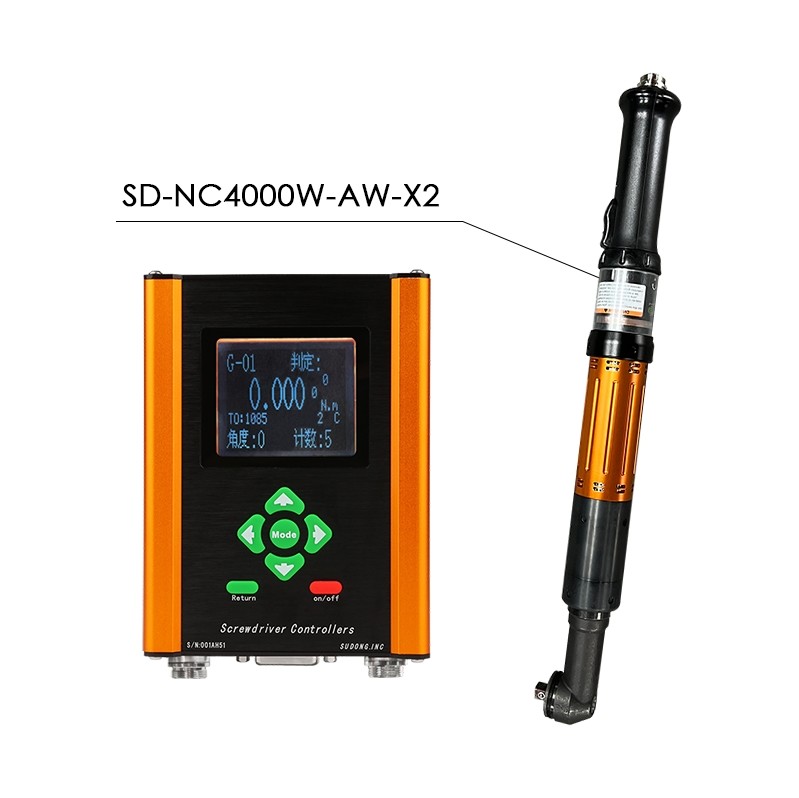

| SD-NC4000W-AW-X2 | 90-400 | 9-40 | 50-300r.p.m | 2100g | 3/8-Hex | |
| SD-NC6500W-AW-X2 | 130-650 | 13-65 | 50-200r.p.m | 3/8-Hex | ||
| 可選扳手輸出頭按需定制 | ||||||
